General
■ Applications
-Control for connection of moving equipment(site equipment, agricultural equipent,refrigerated trucks).
-Control for protection of persons and equipment against the consequences of reverse running.
-Normal/emergency power supply switching.
-Protection against the risk of a driving load(phase failure).
■ Function Features
-Controls its own supply voltage(True RMS measurement).
-Set 8-level rated operating voltage through knob.
- Measuring frequency range:45Hz-65Hz.
- Voltage measurement accuracy<1%.
- Relay status is indicated by LED.
- 1-MODULE,DIN rail mounting.

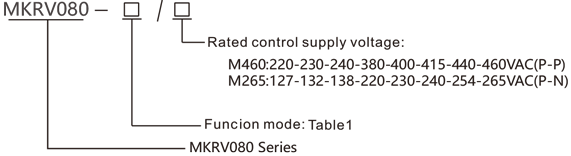

■ Model and connotation
Note:●the function is available
Technical parameters
Panel Diagram
Functions Diagram

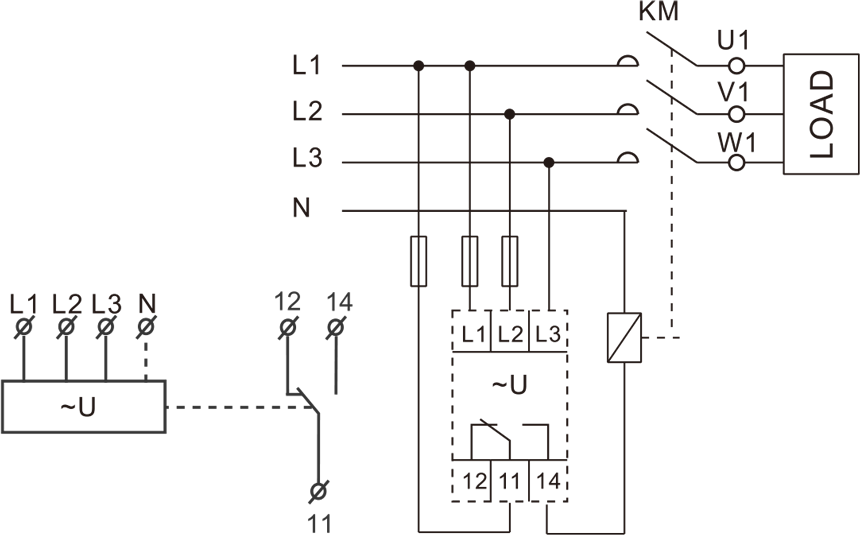

Wiring Diagram

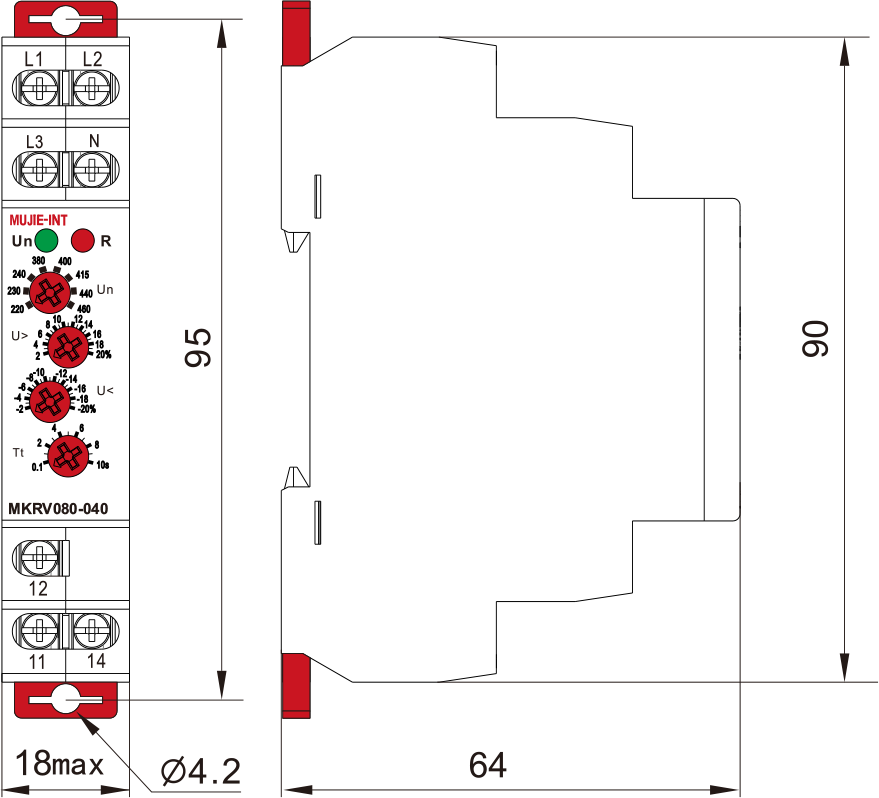

Dimensions(mm)
